TRANSFER PUMP DIAPHRAGMATIC (SPATE)

Spate Pump

https://www.oilspillresponse.gr/wp-content/uploads/2024/12/GOPR2322_MIN.jpg
https://www.oilspillresponse.gr/wp-content/uploads/2024/12/DSC_1399_ΜΙΝ.jpg

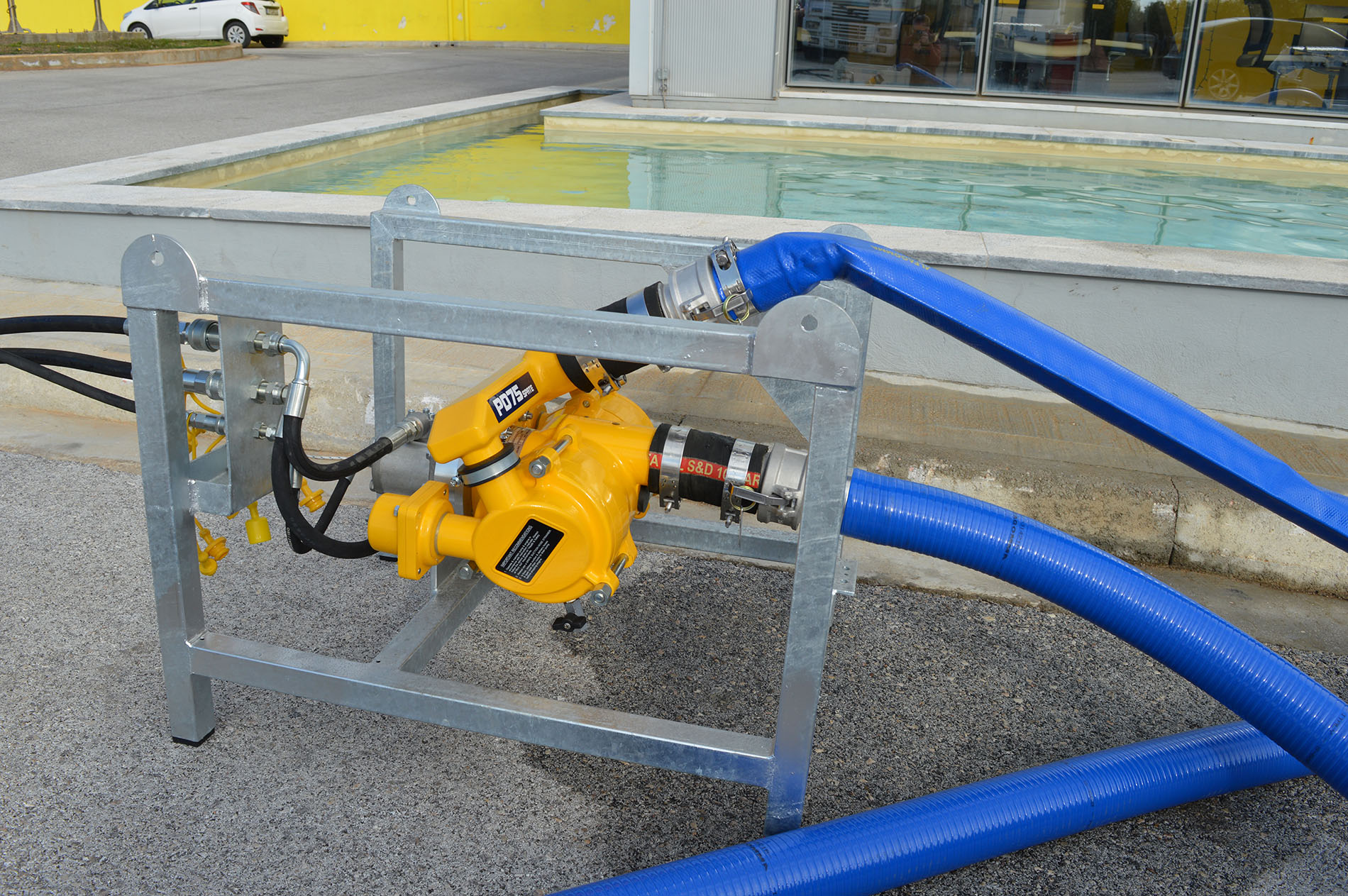

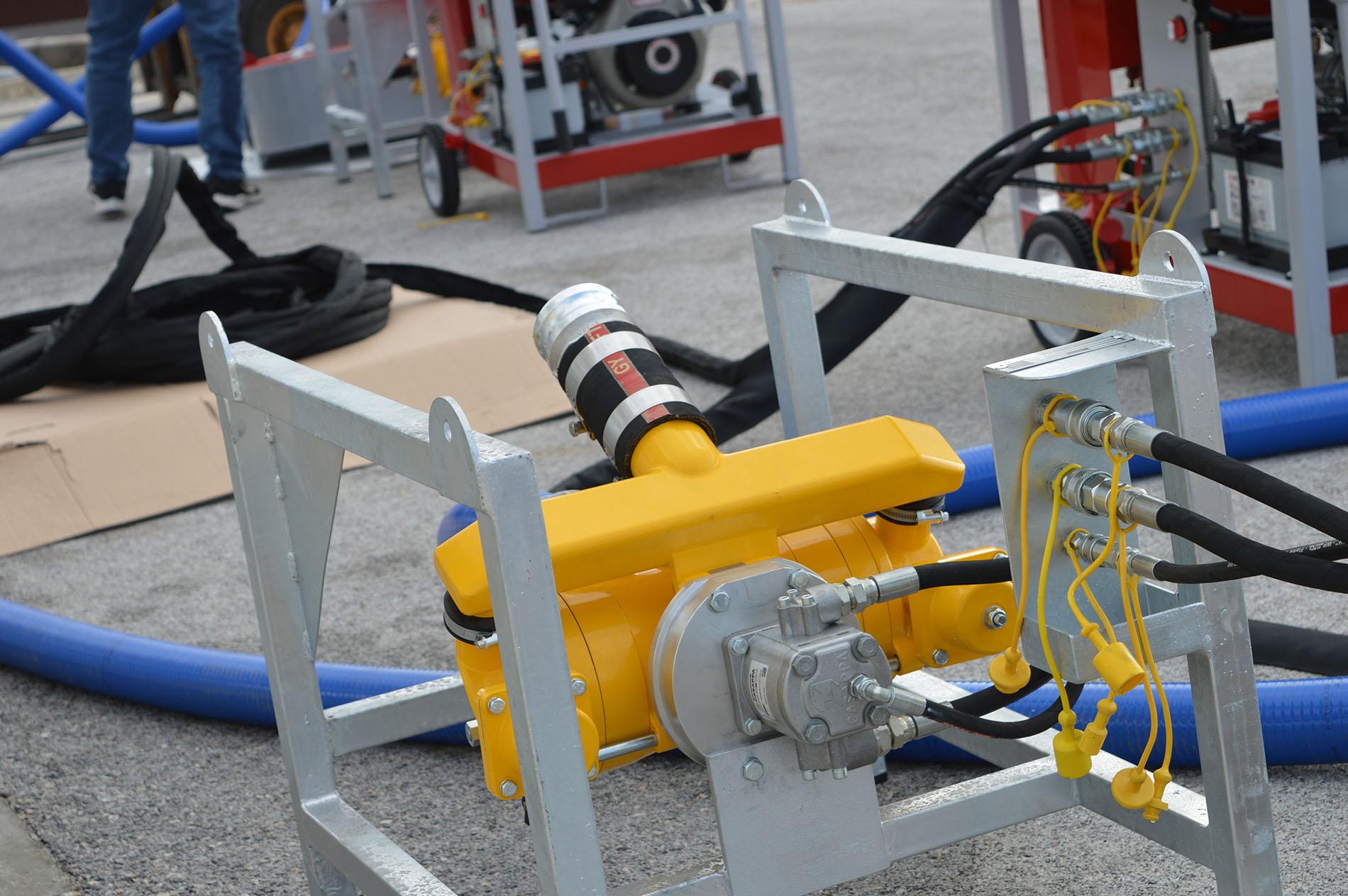

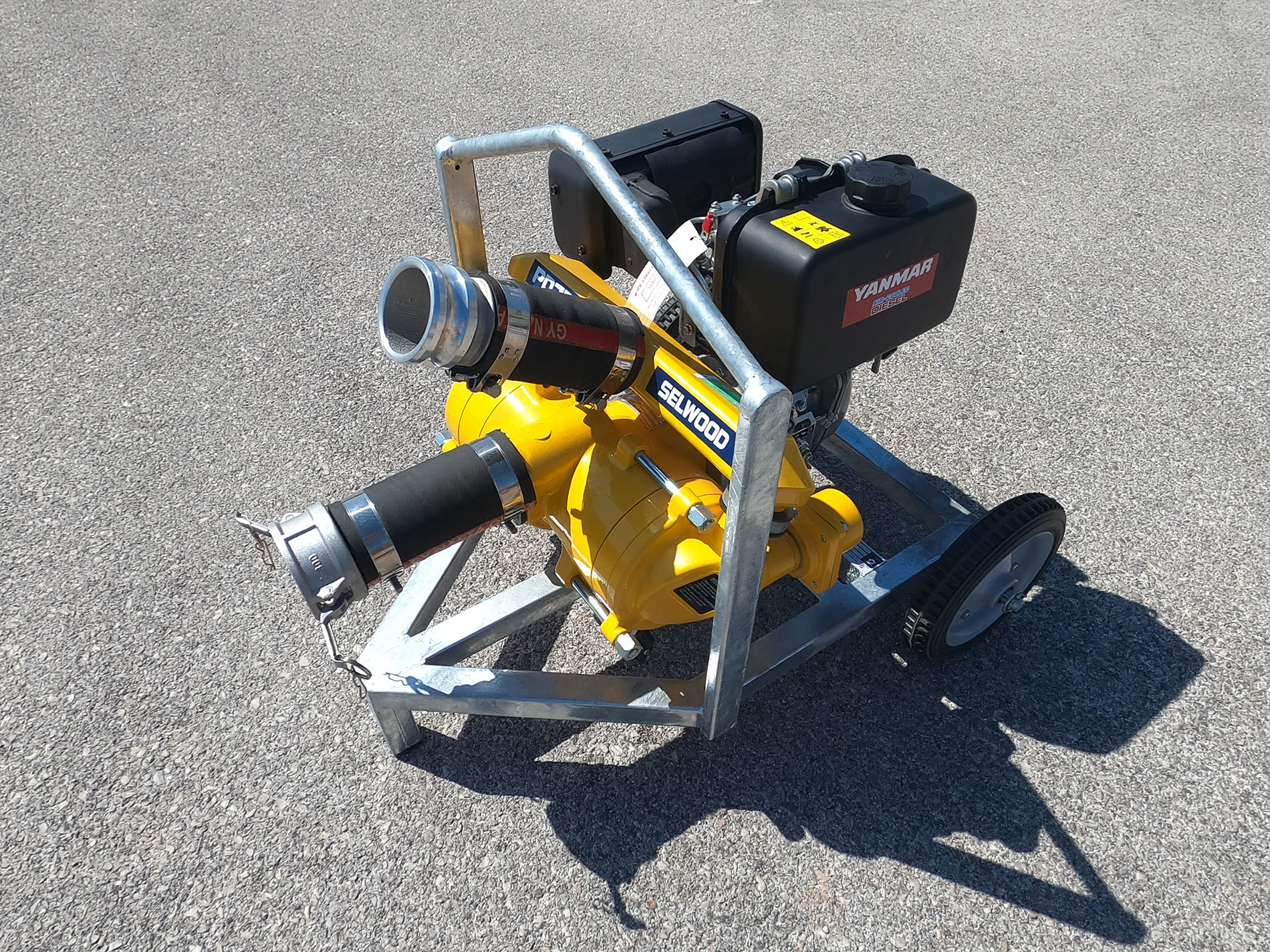

New Naval’s Spate PD 75 Diaphragmatic Pump made by Selwood™, is the ideal transfer pump for versatile applications including oil spill response operations, dewatering, tank cleaning procedures and many other tasks where pumping and liquid transfers take place. The pump has a double diaphragm that provides powerful suction along with oil and water emulsion prevention, allowing rapid gravity separation after pumping. The main advantage of the pump is its extremely light weight making it easy to handle, transport and position in emergency operations. The Pump has a 30 m³/h capacity. The pump can manage 6 mm in diameter solids.


powerful suction, easy handling, and rapid oil-water separation

the perfect pump for versatile, on-the-go operations


Key Features

  • Transfers a range of viscosities
  • Light-weight, compact and easily transported
  • Versatile applications
  • Pairs with a variety of oil spill response equipment
  • World-renowned performance

Pump Application

  • Liquid Transfer
  • Dewatering
  • Lightering

Technical Specifications

ModelSelwood PD 75
Nameplate Capacity30 m³/h
Total Head Lift40m
Delivery Head30.5m
Suction Lift9.1m
Self-Priming Lift8.8m
Dimensions (LxWxH)800 mm x 630 mm x 650 mm
Weight Dry55 kg
Solids Size (max.)6 mm
Pump Speed (min. – max.)960-1450 rpm
Inlet/Outlet Port3’’ Camlock
Air Handling3.77 l/s
Required Hydraulic Flow 18.5 – 37.5 lpm
Hydraulic Pressure120 bar
