ScorTail 3R-M Oil Recovery Skimmer

Share

Free-Floating or Advancing Oleophilic Oil Recovery Skimmer Belt Brush x3 with Integrated Pump

ScorTail 3R-M Oil Recovery Skimmer

https://www.oilspillresponse.gr/wp-content/uploads/2024/11/05_Scortail-30_In-Water-with-Power-Pack-15-kW-min-scaled.jpg
https://www.oilspillresponse.gr/wp-content/uploads/2024/11/DSC_1924_MIN.jpg
https://www.oilspillresponse.gr/wp-content/uploads/2024/11/Gelasakis-Suda-Bay-7_site-scaled-e1736692797808.jpg
https://www.oilspillresponse.gr/wp-content/uploads/2024/11/IMG_6965_MIN.jpg

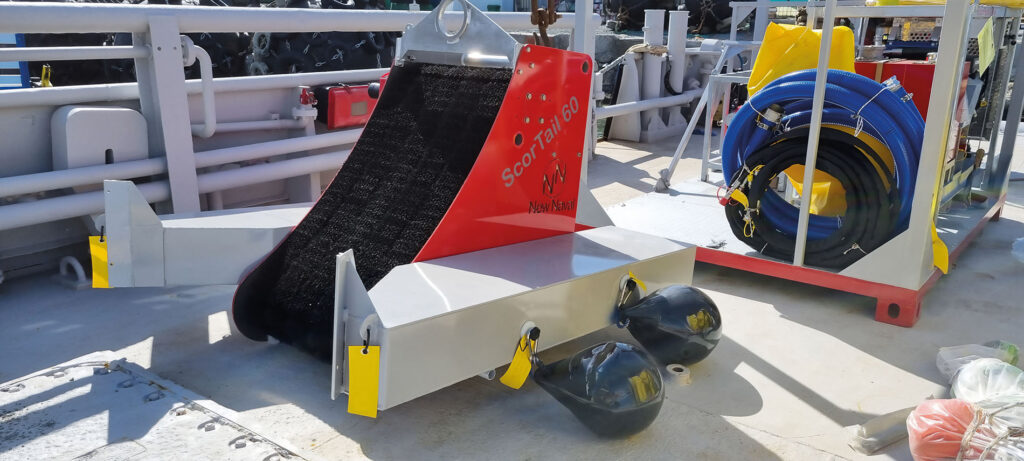

The ScorTail 3R-M Belt Brush Oil Skimmer uses a rotating belt with bristles to recover oil from water surfaces. It is particularly effective for recovering light to heavy oils, including weathered crude. The skimmer incorporates proven oleophilic brush technology and is capable of achieving high recovery capacities with optimum efficiency. Can be equipped with its own floats or can be mounted easily on a vessel, as a bow or side skimmer converting a work boat into an advancing system. Equipped with an on-board or remote/independent transfer pump, the whole system is easily deployed and highly efficient in processing large volume spills.


 Can be equipped with its own floats or can be mounted easily on a vessel, as a bow or side skimmer, converting a work boat into an advancing system.


Key Features

  • Utilizes polypropylene brushes and marine aluminium frame
  • 99% oil recovery rate
  • Light to heavy oil recovery
  • Works well with viscous oils, emulsified oils, and even lighter hydrocarbons
  • Proven oleophilic recovery system utilizing 3 brush rows

Areas of Application

  • Nearshore & Offshore
  • Inland Waters
  • Ports & Harbors

Technical Specifications

Recovery Means3 Rows of Oleophilic Belt Brushes
Nominal Recovery Capacity30 m3/h
Certified Max. Recovery Rate (3x Rows of Brushes) (As per ASTM F2709 – 15)Up to 51 m3/h*
Certified Max. Efficiency (As per ASTM F2709 – 15)99%
Dimensions (LxWxH)2000 x 1550 x 1405 mm
Weight229 kg
Skimmer FrameMarine Grade Aluminium
Discharge PumpOn-board or Remote
Discharge Connection2” or 3” Camlock
Hydraulic Flow Rate12 lpm
Hydraulic Pressure175 bar
Hydraulic Connections1/2” – 3/8”

**Depending on Oil Viscosity & Sea State Conditions
