ScorLite Oil Recovery Skimmer

Share

FREE-FLOATING, MODULAR OIL RECOVERY SKIMMER SYSTEM OLEOPHILIC BRUSH, DISC or DRUM RECOVERY BANK x1

ScorLite Oil Recovery Skimmer

https://www.oilspillresponse.gr/wp-content/uploads/2024/07/GOPR3907_MIN.jpg
https://www.oilspillresponse.gr/wp-content/uploads/2024/07/ScorLite.site1_.jpg
https://www.oilspillresponse.gr/wp-content/uploads/2024/07/Scorlite5.jpg
https://www.oilspillresponse.gr/wp-content/uploads/2024/07/scorlite-air-driven.site_.jpg

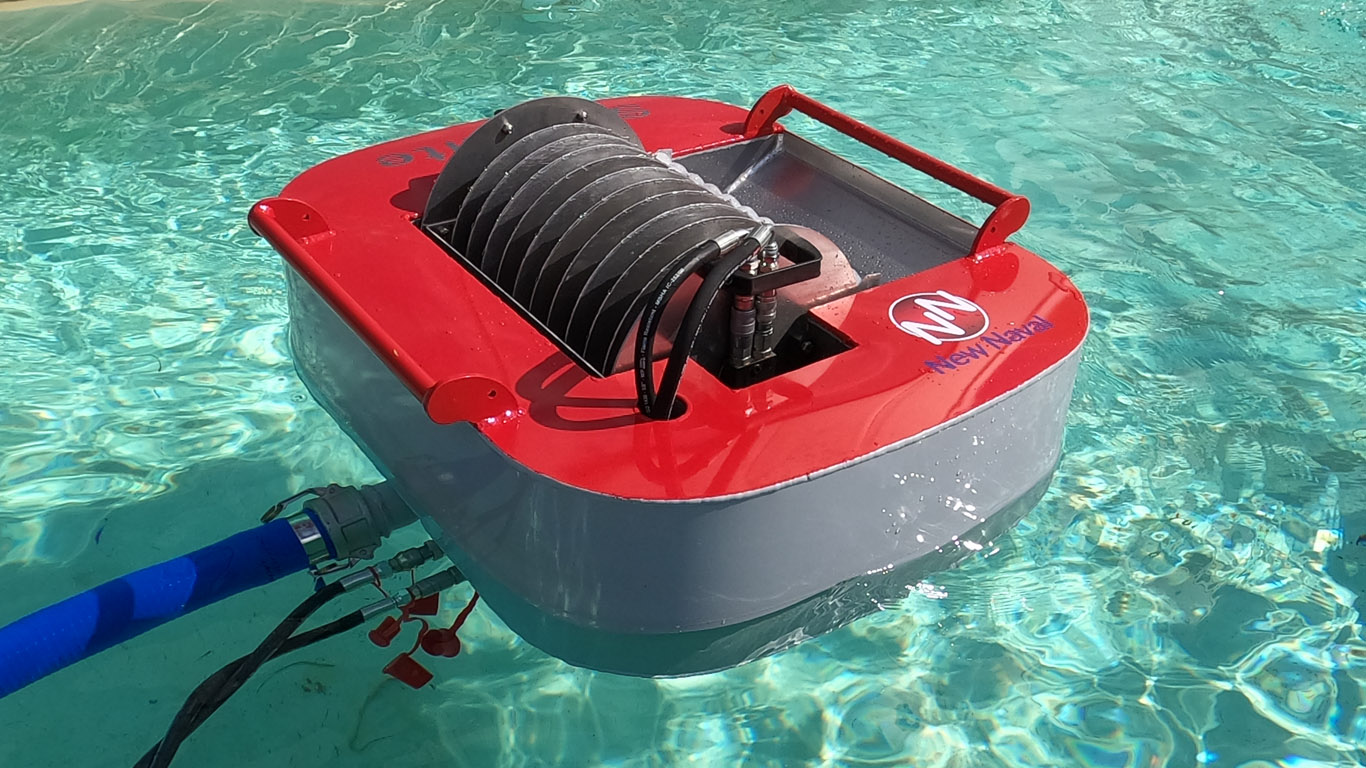

New Naval’s ScorLite is an oleophilic, free-floating skimmer designed for oil recovery operations in varying environments and scenarios. The modular system allows fast interchange from brush, to disc or drum recovery bank depending on the viscosity of the target oil. Proven oleophilic technology allows the system to achieve oil recovery rates of up to 99%. The light-weight system is easily and quickly assembled, deployed and operated in emergency operations. Designed with a shallow draft for portability, the skimmer is effective in operations from inland environments to nearshore applications.


Free-floating skimmer designed for oil recovery operations in varying environments and scenarios.


Key Features

  • Modular system with interchangeable recovery banks (brush, disc and drum banks) for light to heavy viscous pollutants
  • 99% oil, <2% water content brush recovery bank capability
  • Light-weight system, easily transported and deployed
  • Extremely shallow-draft designed for nearshore, port and harbor recovery operations
  • Optional external floats for open sea operations

Areas of Application

  • Nearshore
  • Inland Waters
  • Ports & Harbors

Technical Specifications

Nominal Recovery Capacity (1x Brush Recovery Bank)Up to 30 m3/h
Certified Max. Recovery Rate (1x Brush Recovery Bank) (According to ASTM F2709 – 15)Up to 54 m3/h*
Certified Max. Efficiency (According to ASTM F2709 – 15)99%
Dimensions (LxWxH mm)1000 mm x 915 mm x 506
Weight (with Brush Module)42 kg
Draft200 mm
Skimmer FrameMarine Grade Aluminium
Discharge PumpRemote Discharge
Connection2” or 3”
Camlock Hydraulic Flow Rate3 lpm
Hydraulic Pressure90 bar
Hydraulic Connections3/8”
