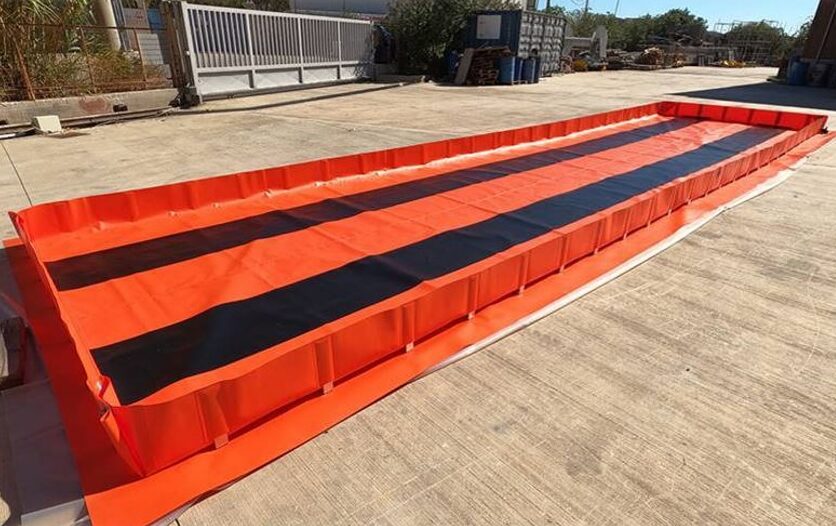

Containment Berm

The Containment Berm is a preventive solution for protecting from unwanted liquid leaks, including water, petroleum, and chemical substances. Made of durable PVC with a specialized surface coating, these containers are resistant to aggressive acids. Their collapsible design ensures easy transport, mobility, and minimal storage space requirements. Ideal for quick deployment.

Fast to Deploy, Made to Protect – New Naval’s Containment Berms

Key Features

Carrying bag
Side handles made of PET webbing
Plastic 1-1/2” ball valve
1 printed logotype per side

Areas of Application

Decontamination
Hydrocarbon Storage
Recovered Liquid
Storage
Water Storage
Decanting Water from Oil

Technical Specifications

Dimensions (LxWxH)	1210 x 2500 x 330mm	12000 x 3000 x 300 mm
Weight Total	Approx. 15 kg	Approx. 70 kg
Fabric of Berm Body	Orange Polyurethane coated both sides membrane, Polyester fabric, 960 gr/m2	Orange Polyurethane coated both sides membrane, Polyester fabric, 960 gr/m2
Tensile Strength of Berm Body Fabric as per ASTM D 751	4500 N/5 cm	4500 N/5 cm
Abrasion Resistance of Berm Body Fabric as per ASTM D 3389	35 mg/1000 cycles	35 mg/1000 cycles
Material of Stays	Alouminum Rod 50×5 mm	Alouminum Rod 50×5 mm
Decanting Valve	Plastic 1-1/2” ball valve	Plastic 1-1/2” ball valve
Fabric of Drive-on Strips		Black Ethylene/vinyl acetate/ PVC, Alloy 1000 gr/m2 for Visual Contrast

Request a Quote

Containment Berm 1210 x 2500

Containment Berm 12000 x 3000
